Simalube SL-01 125ML
สินค้านำเข้าจากสวิตเซอร์แลนด์
Address: 47 ถ.ชัยพฤกษ์ แขวงตลิ่งชัน เขตตลิ่งชัน กรุงเทพมหานคร 10170
Simalube SL-01 125ML
สินค้านำเข้าจากสวิตเซอร์แลนด์
The automatic single-point lubricator simalube can be adjusted from 1 to 12 months
using the unique gas producing drycell that is patented worldwide. The drycell generates pressure
that pushes the grease or oil into the lubrication point.

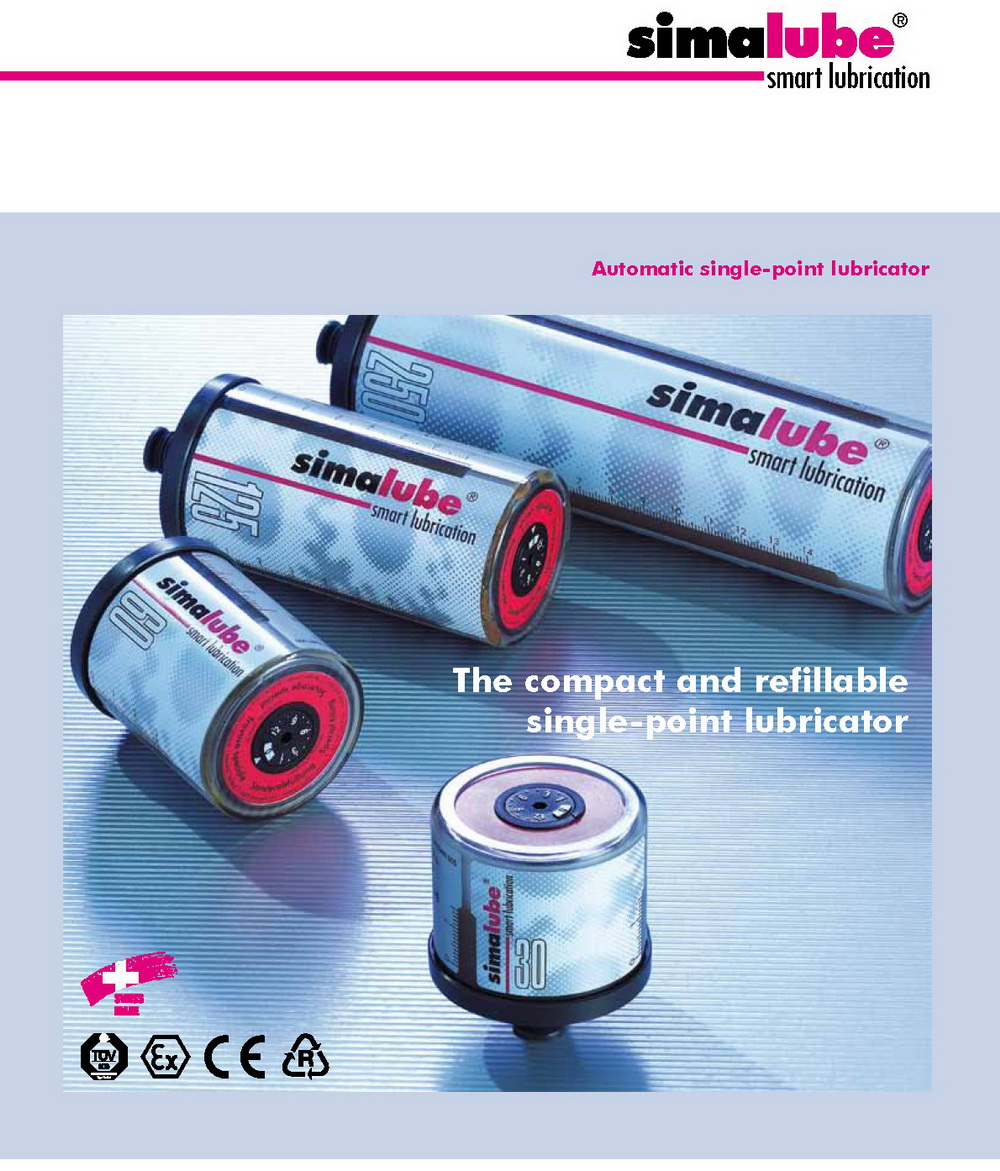

smart lubrication®
Automatic single-point lubricator
The compact and refillable
single-point lubricator
2
The dispensing period is variable and
can be easily adjusted (1–12 months)
Cartridge with gas producing drycells
Cartridge with
gas producing
drycells
Inspection window
Pressure chamber
Transparent housing
Piston
Label
Lubricant
Funnel
R1/4“ connection
The new generation of simalube
lubricators
simalube, the compact lubricator that is
economical, universally adaptable, and a friend
to our environment. Economical lubrication
Using simalube, the lubricant can be
applied directly to the lubrication
point. The simalube lubricator is activated
with a simple twist of the
dispensing dial on the top of the lubricator,
and can be altered at any
time. The lubricant level can always
be monitored through the inspection
window. simalube is ideal for demanding
applications such as lubrication
points in difficult to reach locations or
within dangerous production zones.
simalube is especially well suited for
lubrication points which may easily
be overlooked or forgotten. These,
often critical, lube points are provided
a consistent delivery of lubricant
reliably and automatically, 24 hours
a day for up to one full year. Damages
caused by over or under
lubrication, and the high costs associated
with repairing them, can be
minimized with simalube.
3

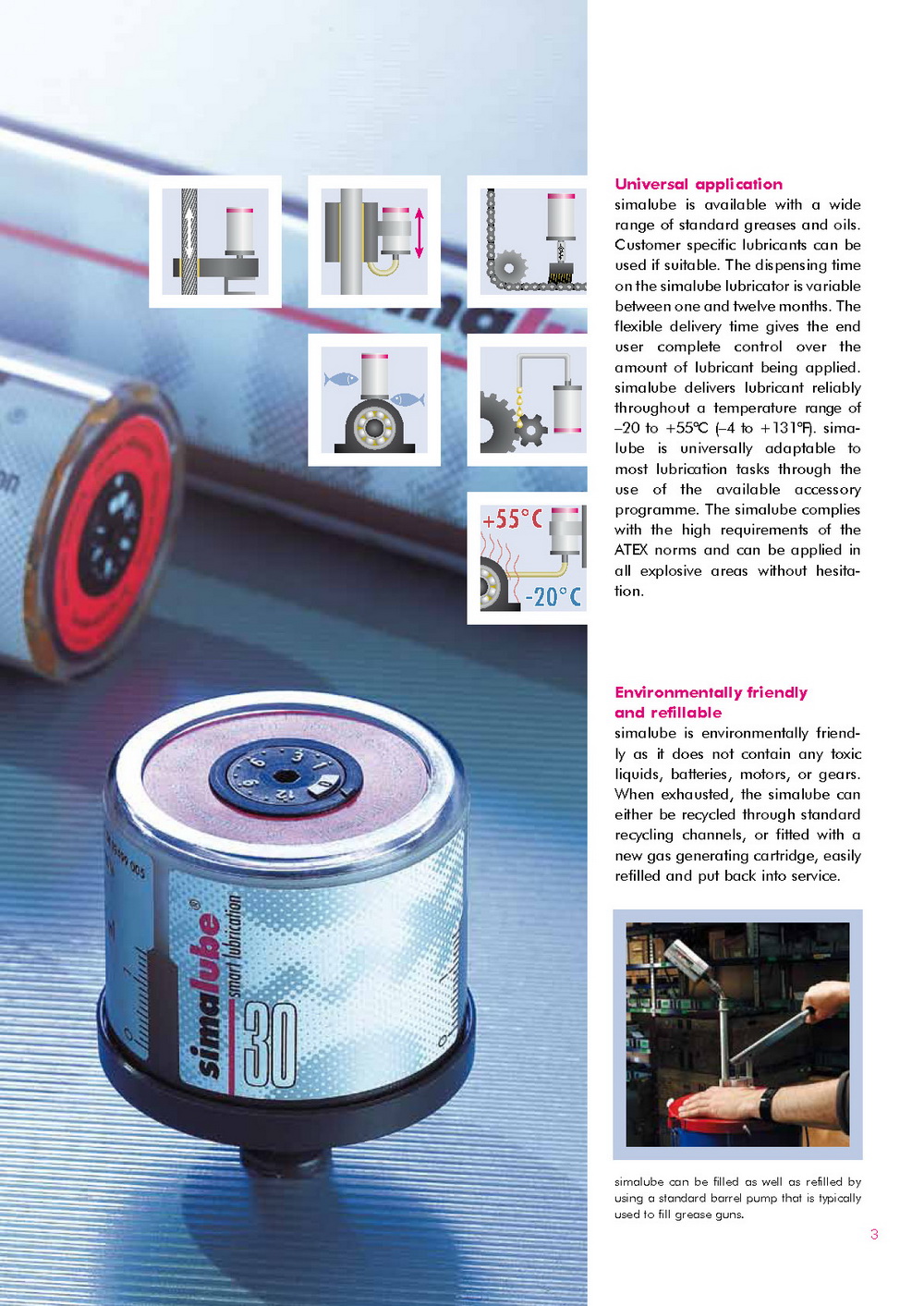

simalube can be filled as well as refilled by
using a standard barrel pump that is typically
used to fill grease guns.
Universal application
simalube is available with a wide
range of standard greases and oils.
Customer specific lubricants can be
used if suitable. The dispensing time
on the simalube lubricator is variable
between one and twelve months. The
flexible delivery time gives the end
user complete control over the
amount of lubricant being applied.
simalube delivers lubricant reliably
throughout a temperature range of
–20 to +55°C (–4 to +131°F). simalube
is universally adaptable to
most lubrication tasks through the
use of the available accessory
programme. The simalube complies
with the high requirements of the
ATEX norms and can be applied in
all explosive areas without hesitation.
Environmentally friendly
and refillable
simalube is environmentally friendly
as it does not contain any toxic
liquids, batteries, motors, or gears.
When exhausted, the simalube can
either be recycled through standard
recycling channels, or fitted with a
new gas generating cartridge, easily
refilled and put back into service.
4
ø 52 mm (2.05 in.)
14 43 mm (1.7 in.)
mm
(0.55 in.)
R1/4”
simalube 30
ø 52 mm (2.05 in.)
62 mm (2.4 in.)
R1/4”
simalube 60
14
mm
(0.55 in.)
ø 52 mm (2.05 in.)
100 mm (3.9 in.)
R1/4”
simalube 125
14
mm
(0.55 in.)
193 mm (7.6 in.)
R1/4”
simalube 250
14
mm
(0.55 in.)
ø 52 mm (2.05 in.)
Ø 22 mm
(0.86 in.)
R1/4”
14
mm
(0.55 in.)
70 mm (2.75 in.)
simalube 15
For further information on products and applications please request a simalube data sheet.
You can find a list of simalube distributors at www.simalube.com
Applications
Dimensions and standard lubricants
Standard lubricants Order Number
No. Application Temperature
range (°C) Base oil Thickener
Lubricant need
15 ml 30 ml 60 ml 125 ml 250 ml
SL01 Multipurpose grease –30/+120ºC Mineral oil Li/Ca SL01-15 SL01-30 SL01-60 SL01-125 SL01-250
SL02 Multipurp. grease + MoS2 –25/+130ºC Mineral oil Li SL02-15 SL02-30 SL02-60 SL02-125 SL02-250
SL04 High temperature grease –20/+160ºC Mineral oil Be SL04-15 SL04-30 SL04-60 SL04-125 SL04-250
SL06 Fluid grease –20/+120ºC Mineral oil Li/Ca SL06-15 SL06-30 SL06-60 SL06-125 SL06-250
SL09 Biodegradable grease –20/+80/100ºC Ester oil Li/Ca SL09-15 SL09-30 SL09-60 SL09-125 SL09-250
SL10 Food industry grease –30/+140ºC Synthetic Al SL10-15 SL10-30 SL10-60 SL10-125 SL10-250
SL14 Chain oil –10/+90ºC Mineral oil SL14-15 SL14-30 SL14-60 SL14-125 SL14-250
SL15 High temperature chain oil –30/+250ºC Synthetic SL15-15 SL15-30 SL15-60 SL15-125 SL15-250
SL16 Machine oil –20/+100°C Mineral oil SL16-15 SL16-30 SL16-60 SL16-125 SL16-250
SL18 Food industry oil –15/+150ºC Synthetic SL18-15 SL18-30 SL18-60 SL18-125 SL18-250
SL19 Biodegradable chain oil – 15/+100ºC Ester Oil SL19-15 SL19-30 SL19-60 SL19-125 SL19-250
SL24 Wide temp. range grease –30/+150ºC Mineral oil Li comp. SL24-15 SL24-30 SL24-60 SL24-125 SL24-250
SL25 High temperature grease –20/+180°C Mineral oil Polyurea SL25-15 SL25-30 SL25-60 SL25-125 SL25-250
SL26 High performance grease –20/+150°C Mineral oil Ca/comp SL26-15 SL26-30 SL26-60 SL26-125 SL26-250
5
2012 2035
2036
2037
2038
2010
2014
2010
2034
2013
2035
2036
2037
2038
1045
1046
2800 2035-S
2036-S
2037-S
1045
1046
2039
2010
2041
1005
4100
4101
x
2082
2083
2084
2000
2080
2082
2083
2084
2081
2080
1060
2000
Applications with simalube accessories
A comprehensive simalube accessory programme enables the simple application of simalube,
the automatic single-point lubricator.
Adaptor for Perma clamp Chain lubrication with clamp Chain lubrication with round
brush and two clamps
Chain lubrication with bracket,
universally adjustable
Chain lubrication with lateral
connection
Lubrication of elevator guides
or wire ropes
Round brush with 90°
connection
4-fold adapter WRONG!
Problematic due to different
counter pressure!
3-way bracket Mounting support with
protective cover for simalube
66
simalube accessory programme
Bent connection 45°
1/4“ 1001
Nickel-plated cast steel
Description Art.
Bent connection 90°
1/4“ 1002
Nickel-plated cast steel
90°-connection with thread
70 mm, incl. 2 nuts 1005
Brass, nickel plated
Connecting nipple 1/4“ x
3/8“ 1010
1/2“ 1011
Brass, nickel plated
Reducing nipple 1/4“ x
1/8“ 1020
1/4“ 1021
M6 1022
M8 1023
M8x1 1024
M10 1025
M10 x 1 1026
M12 1027
M12x1,5 1028
1/4“ (UNF) 1121
Brass, nickel plated
Extension
10 mm 1021
35 mm 1040
50 mm 1041
Brass, nickel plated
Screwed connection with hole
25 mm, incl. 1 nut 1045
60 mm, incl. 2 nuts 1046
Brass, nickel plated
Y-manifold
(incl. reducing nipple 1021)
1/4“ 1050
Brass, nickel plated
Quick connection
for hose ø 8 mm
(incl. gasket ring 5080)
1/4“ female 1060
Brass, nickel plated
Quick connection
for hose ø 8 mm
1/8“ male 1070
1/4“ male 1071
3/8“ male 1072
Brass, nickel plated
Description Art.
Hose
ø 8/6 mm 2000
per meter
(Art. and length to be specified)
Plastic
Clamp
for simalube®
ø 50 mm 2010
ø 22 mm 2015
Plastic
Adapter
for Perma clamp
ø 50 mm 2012
Plastic
Distance holder
to clamp for round brush
15 mm 2014
Plastic
Mounting support
consisting of: 2080
- flange
- connecting nipple 1/4“
- nut
Plastic / brass, nickel plated
Protective cover
to mounting support 2080 2081
Steel, varnished
Bracket
for installation support
75 mm (1 bore) 2082
240 mm (3 bores) 2083
390 mm (5 bores) 2084
Steel, burnished
Clamp
for round brush
ø 28 mm 2013
Plastic
Non-return valve
1/8“ 2020
1/4“ 2021
Brass, nickel plated
7
L
31.5
5–16
B
400 ml
Round brush, plastic bristles
ø 25x45 mm 2034
Plastic
Description Art.
Round brush, horse bristles
ø 25x15 mm 2041
Plastic
Brush, plastic bristles
40 mm 2035
70 mm 2036
100 mm 2037
25 mm 2038
Aluminium
Brush, lateral connection
plastic bristles
40 mm 2035-S
70 mm 2036-S
100 mm 2037-S
Aluminium
Elevator brush
plastic bristles
L x B
151 x 102 mm 2039
113 x 84 mm 2042
Plastic
Grease gun
with valve pipe 3010
Connector nipple
for cleaning and filling
of grease lines
1/4“ 3011
Brass, nickel plated
Refill nipple
for refilling of simalube®
1/4“ 3012
Brass, nickel plated
Connector nipple
to grease gun filler for
filling simalube®
1/4“ 3013
3/8“ 3014
Plastic
Bracket
universally adjustable 2800
Steel, burnished
4-fold adaptor
1/2“ 4100
1/4“ 4101
Plastic / brass, nickel plated
Closing nipple
ø 8 mm (100 pcs.) 5050
Plastic, green
Non-return valve plug
ø 8 mm (100 pcs.) 5060
Plastic, yellow
Grease cartouche
400 ml, DIN 1284
Multipurpose grease KA01
Multipurpose grease with MoS2 KA02
High temperature grease KA04
Fluid grease KA06
Biodegradable grease KA09
Food industry grease KA10
Wide temperature range grease KA24
High temperature grease KA25
High performance grease KA26
Gasket ring 5080
Plastic
Description Art.
Subject to change without notice.
Allen key
3 mm (100 pcs.) 4010
Cartridge REFILL (Gas generator)
30 ml 5004
60 ml 5006
125 ml 5008
250 ml 5010
2-fold adaptor
1/2“ 4102
1/4“ 4103
Plastic / brass, nickel plated
Oil bottle, 0.5l
Chain oil OF14
High temperature chain oil OF15
Machine oil OF16
Food industry oil OF18
Biodegradable chain oil OF19
simatec maintenance products
The simatool product range is designed for a quick, precise and safe mounting and dismounting
of bearings and seals. simatools are used around the globe in machinery repair and
maintenance shops.
The simatherm induction heaters provide fast warm-up of circular metal parts, for example
bearings, for hot-mounting parts with an interference fit. Inductive heating of metal workpieces is
cost-effecitve, time-saving and protects the environment. simatec is a global leader in thermal
mounting technologies.
World class lubrication, mounting and dismounting
With 3 products lines, simatec takes care of your critical machinery and plant operation to
ensure maximum runtime.
The automatic single-point lubricator simalube can be adjusted from 1 to 12 months
using the unique gas producing drycell that is patented worldwide. The drycell generates pressure
that pushes the grease or oil into the lubrication point.
610.9201/1403
smart lubrication®
PRODUCT OVERVIEW
Automatic lubricators
2
«Once installed, simalube lubricators lubricate
evenly, accurately and reliably. This is not at all
possible with manual lubrication.»
simalube
Advantages of automatic lubrication with simalube 3
simalube – the lubrication expert 4/5
simalube 15 ml 6
simalube multipoint 7
simalube IMPULSE 8/9
Applications 10/11
Standard lubricants 12
Accessories 13/14/15
simalube: continuous
lubrication ensures low costs
and high reliability
Millions of simalube lubricators are used worldwide in every
industry. They are the best and most economical solution for
the continuous supply of grease or oil for periods of up to one
year.
simalube – everywhere forces act, something spins or
something moves.
Because my bearings
are worth it!
3
Advantages of automatic lubrication
with simalube
Optimized lubricant delivery Lower costs thanks to simalube
simalube lubricators replace costly manual lubrication. This not only saves time, but also prevents insufficient or over-lubrication. The costs
can thus be reduced by up to 30 percent.
No more manual lubrication
■ Saves time
■ Greater work safety
■ Hard-to-reach lubrication points are permanently supplied
■ Lower lubricant consumption
No under- or over-lubrication of components
■ Less wear
■ Less machine downtime
■ Increased machine performance
Sealed, dustproof and waterproof system
■ No more confusion of lubricants
■ Reduced risk of contamination
■ No contamination of lubrication points
Compliance with international standards
■ TÜV-tested and Ex certified in all zones
■ Improved workplace safety
■ No environmental impact thanks to recycling and disposal according to regulations
Benefits of automatic lubrication with simalube
–30%
Continuous lubricant delivery with simalube effectively prevents insufficient or
over-lubrication that often occurs with manual lubrication.
Up to 30 percent lower costs:
■ Time-saving and greater safety at work thanks
to fewer maintenance intervals
■ Longer machine service life and less
unplanned down-time
4
simalube – the automatic
single-point lubricator
Available in 5 sizes, simalube supplies various lubrication points with lubricant around the clock.
Day in, day out – for up to one year.
simalube –
the lubrication expert
More technical information and user manual can be downloaded at
www.simatec.com/en/simalube
TOM's
TIP
Take advantage of the simalube benefits
Reliability
■ Lubrication points are continuously supplied with lubricant
■ No lubrication point is missed
■ Easy monitoring of the dispensing process thanks to the transparent housing
Environmental sustainability
■ simalube can be refilled up to 3 times
■ Easy disposal at end of dispensing cycle
■ simalube lubricators do not contain toxic substances
Flexibility
■ simalube is available in 5 sizes: 15, 30, 60, 125 and 250 ml
■ Freely selectable dispensing cycle of 1 to 12 months
■ Dispensing cycle can be modified anytime
■ simalube is available filled or empty for self-filling
Unlimited range of uses (see pages 10/11)
■ In confined and hard-to-reach spaces
■ In any location, even underwater
■ At ambient temperatures of –20 °C to +55 °C
■ Numerous installation options thanks to a large range of accessories
■ The standard lubricant range includes modern and proven high-performance lubricants for
all applications (see pages 12/13)
+55 C
–20 C
5
To determine the size and time setting, use our free
«Calculation Pro» program at www.simatec.com/en/calpro
Product Automatic long-term grease and oil lubricator
Power generation Hydrogen gas producing drycell
Working pressure Max. 5 bar
Adjustment Stepless 1–12 month
(for standard conditions)
Operating temperature – 20 °C to +55 °C ambient temperature
(Grease consistency changes with temperature)
Storage temperature Recommended at 20 °C ±5 °C
Lubricator volume 30 ml 60 ml 125 ml 250 ml
Weight full ~82 g ~115 g ~190 g ~335 g
Weight empty ~55 g ~60 g ~75 g ~111 g
Refill The 30–250 ml simalubes are refillable.
Certifications
Components Specifications
43 mm
(1.7 in)
simalube 30
62 mm
(2.4 in)
simalube 60
100 mm
(3.9 in)
simalube 125
14 mm
(0.55 in)
14 mm
(0.55 in)
14 mm
(0.55 in)
14 mm
(0.55 in)
193 mm
(7.6 in)
simalube 250
Drive
Pressure chamber
Piston
Housing
Label
Lubricant
Connection
Ø 52 mm
(2.05 in)
Ø 52 mm
(2.05 in)
Ø 52 mm
(2.05 in)
Ø 52 mm
(2.05 in)
R 1/4" R 1/4" R 1/4" R 1/4"
6
simalube 15 ml
Product Automatic, long-term grease and
oil lubricator
Power generation Hydrogen gas producing
drycell
Working pressure Max. 5 bar
Adjustment Stepless 1–12 months
(for standard conditions)
Operating temperature – 20 °C to +55 °C ambient temperature
(Grease consistency changes with
temperature)
Storage temperature Recommended at 20 °C ±5 °C
Lubricator volume 15 ml
Weight full/empty ~35 g / ~21.5 g
Certifications
Dimensions Specifications
The smallest automatic lubricator
In confined spaces, the 15 ml simalube offers the perfect solution. With its compact size, it is unique on the global market as the smallest
automatic lubricator. It functions the same as the larger simalube lubricators and offers the same advantages.
Ø 22 mm
(0.87 in)
71 mm (2.8 in)
Small size delivers big performance
■ Space-saving thanks to compact size
■ Robust aluminium enclosure
■ Same installation and function as other simalube lubricators
■ Alternative to the simalube multipoint when less than 5 lubrication points are needed (see page 7)
Drive
Pressure chamber
Piston
Housing
Label
Lubricant
Connection
14 mm
(0.55 in)
R 1/4"
7
Drive
Pressure Chamber
5×8 ml lubricant
Snap-on connector
Hose Ø 4/2.7 mm
total of 5 outlets
simalube multipoint
Product Automatic, multi-point, long-term lubricators
for grease and oil
Power generation Hydrogen gas producing drycell
Working pressure Max. 5 bar
Adjustment Stepless 1–12 months
(for standard conditions)
Operating temperature –20 °C to +55 °C ambient temperature
(grease consistency changes with
temperature)
Storage temperature Recommended at 20 °C ±5 °C
Lubricator volume 5×8 ml
Weight full/empty ~147 g / ~120 g
Certifications
Dimensions Specifications
Automatic multi-point lubricator
The simalube multipoint simultanously supplies 5 lubrication points for up to one year in the same reliable way as the other proven simalube
lubricators. Thanks to the snap-on connector, simalube multipoint can be replaced easily and quickly when empty.
The versatile lubricator for linear guides
■ 5×8 ml lubricant volume
■ Allows very low lubricant delivery over a long period of time
■ Snap-on connector for multipoint
■ Quick couplings for connecting hoses
■ Ideally suited for lubrication of linear guides
Ø 52 mm (2.05 in)
16.5 mm
(0.65 in) 105 mm (4.13 in)
8
simalube IMPULSE
Pressure booster up to 10 bar
The simalube IMPULSE ensures reliable lubrication in situations with high counterpressure
and long lubrication lines. With the automatic simalube lubricators, this
pressure booster pumps greases and oils at up to 10 bar and 0.5 ml per impulse to
the targeted lubrication point.
The LED display of the intelligent pressure booster provides information continuously
about the current operating condition, and flashes green when the device is functioning
correctly.
More technical information and a video for simalube IMPULSE
can be found at www.simatec.com/en/impulse
TOM's
TIP
Powerhouse in compact form
Functionality
■ Lubrication impulses of 0.5 ml of oil or grease up to NLGI 2 at a pressure of
up to 10 bar
■ Indication of operating condition via flashing LED status display (green/red)
■ Dispensing time can be modified at any time via the lubricator
■ Modular system, fully compatible with 60, 125 and 250 ml simalube lubricators
■ The lubricator can be replaced without removing the simalube IMPULSE
■ Gentle on all lubricants, as only the dosing quantity is under pressure
Diverse applications
■ Can be installed outside of high-temperature or hazardous areas with tubes
up to 4 metres long
■ The compact format means it can be installed in very small spaces
■ Functions perfectly in all positions, even underwater
Efficiency
■ High cost savings thanks to reusability
9
Install simalube IMPULSE. Insert
battery pack, screw in simalube
lubricator and adjust time.
Install simalube IMPULSE Simple refilling
Procure new battery pack and
new cartridge, refill dispenser
yourself ...
... or procure a new battery
pack and new simalube
lubricator.
Product Automatic pressure booster for the simalube
lubricator
Drive system Electromechanical
Power supply Battery pack, 6 V 2.3 Ah
Battery pack for low temperatures, 6 V 2.9 Ah
Function display LED status display:
green/red every 10 seconds
Dispensing volume 0.5 ml per stroke
Working pressure Up to 10 bar
Time setting 1 to 12 months – determined by the setting
on the simalube
Operating temperature –10 °C to +55 °C
Lubrication rate Depends on the size and settings of the
simalube: 0.17 to 8.3 ml/day
Lubricator volume According to lubricator:
60 ml, 125 ml or 250 ml
Lubricant Grease up to NLGI 2 or oil
Installation position Any
Weight 0.24 kg
Warranty & service life 3 years from the production date
or until 10 simalube lubricators (125 ml)
have been emptied
Tests/Approvals
Components Specifications
simalube lubricator
Detector piston
Electronics/display
Release switch
Drive motor
Pump piston
Spindle
simalube 60 125 250
Ø 59 mm (2.32 in)
262 mm (10.31 in)
130 mm (5.12 in)
75 mm (2.95 in)
169 mm (6.65 in)
R 1/4"
10 mm (0.39 in)
10
simalube applications
The spindles of a lifting station for railway wagons and locomotives
are lubricated with 125 ml simalube over 12 months.
Two 250 ml simalube lubricators with brushes lubricate and clean
the chain drive of a drum washing machine.
The drive chain of a transport belt, which allows rolls to cool, is
cleaned with special blue brushes and lubricated with 2 simalube
SL18 in 30 and 60 ml sizes.
125 ml simalube lubricators lubricate the rotating assembly of a
crane.
LIFTING DEVICES FOOD INDUSTRY
GRAVEL AND CONCRETE PLANTS CRANES
11
A simalube multipoint can lubricate 5 linear guides of a cutting
and paper stacking machine in a printing house.
The simalube IMPULSE with a 125 ml lubricator is used in gravel
plants. The IMPULSE pushes the lubricant with a pressure of 10
bar through a 4-metre lubrication line.
A 125 ml simalube lubricates the pedestal bearing of a conveyor
belt.
60 ml lubricators on the electric motor and the drive shaft ensure
continuous lubrication of a centrifugal pump.
The 125 ml simalube maintains the guide rails of elevators and
prevents dry friction. The system is attached directly to the cabin
roof.
15 ml simalube lubricators with brushes constantly supply the rack
of a loading machine with oil. Additional 15 ml simalube lubricators
lubricate the flange bearings with grease.
Many other applications can be found at
www.simatec.com/en/simalube-applications
TOM's
TIP
GRAVEL AND CONCRETE PLANTS
PRINTING INDUSTRY
RECYCLING
ELEVATORS AND ESCALATORS
WATER TREATMENT/SEWAGE TREATMENT PLANTS
MACHINERY AND PLANT ENGINEERING
12
GREASE
NLGI
Thickener
Temperature range
Viscosity at 40 °C
Applications
SL01
Water-resistant, long-term grease
2 Lithiumcalcium
–30 °C to
120 °C
118
+ + • • + + –
SL02
High-performance grease with
MoS2
2 Lithium –25 °C to
130 °C
270
• + – + – – –
SL04
High-temperature grease for longterm
lubrication (EP)
2 Inorganic
thickener
–20 °C to
160 °C
540
+ • – • • – –
SL06
Water-resistant, fluid grease (EP)
0 Lithiumcalcium
–20 °C to
120 °C
150
+ + + + • – –
SL09
Universal grease, readily biodegradable
2 Lithiumcalcium
–20 °C to
100 °C
100
+ + • • – – –
SL10
Special grease for food, beverage
and pharmaceutical industries
2 Aluminium
complex
–30 °C to
140 °C
350
+ + • + • – –
SL24
Lubricating grease for a wide
temperature range (EP)
2 Lithium
complex
–30 °C to
140 °C
185
+ + • • + + –
SL25
High-temperature polyurea lubricating
grease
2 Polyurea –20 °C to
160 °C
110
+ • – • • – –
SL26
Calcium sulfonate complex grease
(EP)
1.5 Calcium
complex
–20 °C to
150 °C
460
+ + – • • – –
+ recommended • possible – not recommended
Roller bearings
Plain bearings
Linear guides
Gears/
Toothed racks
Spindles
Shaft seals
Chains
Datasheets are available for all greases and oils at
www.simatec.com/en/lubricants
TOM's
TIP
simalube standard lubricants
and accessories
13
OIL
ISO-VG
Base oil
Temperature range
Viscosity at 40 °C
Applications
SL14
Chain oil (EP)
68 Mineral oil –10 °C to
90 °C
68
– • • – – – +
SL15
High-temperature chain oil (EP)
– Synthetic oil –30 °C to
250 °C
250
– • • – – – +
SL16
Paraffinic lubricating oil
68 Mineral oil –20 °C to
100 °C
68
– • • – – – +
SL18
High performance lubricating oil
for the food, animal feed and
pharmaceutical industry
220 Synthetic oil –15 °C to
150 °C
220
– • • – – – +
SL19
Organic chain oil
– Rapeseed
oil
–15 °C to
100 °C
60
– • • – – – +
290.1045
290.1046
290.2035-S
290.2036-S
290.2037-S
290.2038-S
Chain lubrication with lateral
connection
Mounting support with protective
cover for simalube
Chain lubrication with round
brush and two clamps
Chain lubrication with bracket,
universally adjustable
Mounting bracket
Chain lubrication with clamp
Lubrication of elevator guides
or wire ropes
Round brush with
90° connection
+ recommended • possible – not recommended
Application examples
The simalube can be easily installed anywhere and in any position with these accessories.
290.2000
290.2002
290.2004
290.2039
290.2042
290.2034
290.2013
290.2010
290.2014
290.2080
290.2082
290.2083
290.2084
290.1060
290.2082
290.2083
290.2084
290.2035
290.2036
290.2037
290.2038
290.2010
290.2010
290.1005 290.2041
290.2800
290.2081
290.2085
290.2000
290.2002
290.2004
290.2080
290.1060
290.2035
290.2036
290.2037
290.2038
290.1045
290.1046
Roller bearings
Plain bearings
Linear guides
Gears/
Toothed racks
Spindles
Shaft seals
Chains
14
Bent connection 45˚
D R 1/4
Nr. 290.1001
Extension
L 10 35 50
Nr. 290.1021 290.1040 290.1041
A 25 40 70
Nr. 290.2038 290.2035 290.2036
Nr. 290.2038-FN 290.2035-FN 290.2036-FN
Filling nipple,
for cleaning and filling of grease lines
Bent connection 90˚ Screwed connection with hole,
25 mm incl. 1 nut / 60 mm, incl. 2 nuts
L 25 60
Nr. 290.1045 290.1046
Refill nipple,
for refilling of simalube
Non-return valve plug, Plastic
Bent connection 90˚ swiveling
Rotary elbow,
for hose Ø 8 mm
Quick connection, for hose Ø 8 mm
Refill nipple,
to grease gun filler for filling simalube
Non-return valve
90˚ connection with thread,
incl. 2 nuts (only for oil)
Quick connection, for hose Ø 8 mm
Gas generator, for refilling
Connecting nipple
D G 3/8 G 1/2
Nr. 290.1010 290.1011
D G 1/8 G 1/4
Nr. 290.1007 290.1008
D G 1/4
Nr. 290.3012
D G 1/8 G 1/4
Nr. 290.2020 290.2021
D R 1/4 R 3/8
Nr. 290.3013 290.3014
4-fold adapter
Fixation nipple G½" – R¼"
2-fold adapter
Reducing nipple
Y-manifold,
contains reduction art. 290.1021
Protective cover, to mounting support art. 290.2080 Mounting support, for all simalube sizes
Connections
Lubricator accessories and miscellaneous
Safety accessories
D G 1/8 G 1/4 M 6 M 8 M 8×1
Nr. 290.1020 290.1021 290.1022 290.1023 290.1024
D M 10 M 10×1 M 12 M 12×1.5 UNF 1/4
Nr. 290.1025 290.1026 290.1027 290.1028 290.1121
D R 1/4
Nr. 290.1004
L 70
Nr. 290.1005
D R 1/4
Nr. 290.1002
L 25
Nr. 290.1015
D R 1/4
Nr. 290.3011
Nr. 290.5060
D R 1/4
Nr. 290.2080
D G 1/4
Nr. 290.1060
D G 1/8 G 1/4 G 3/8
Nr. 290.1070 290.1071 290.1072
30 ml 60 ml 125 ml 250 ml
Nr. 220.5004 220.5006 220.5008 220.5010
≤125 ml 250 ml
L 105 195
Nr. 290.2081 290.2085
D R 1/4
Nr. 290.1050
D G 1/2 G 1/4
Nr. 290.4100 290.4101
D G 1/2 G 1/4
Nr. 290.4102 290.4103
[mm]
[mm]
[mm]
[mm]
[mm]
15
Round brush
Hose, available by the metre
Brush lateral connection,
SFN for food applications
Adapter for clamp (60 mm), Plastic
Round brush short
Hose for temperatures up to 260 °C,
available by the meter
Elevator brush,
5–16 mm, height 32 mm
Elevator brush,
16–32 mm, height 32 mm
Distance holder,
to clamp for round brush art. 290.2013
Brush, FN for food applications
Hose for small bend radius,
available by the metre
Clamp for simalube/round brush, Plastic
Magnetic fixture, for clamps
Elevator brush small, 5–16 mm, height 32 mm
Bracket,
to mounting support simalube art. 290.2080
Quick connection, for hose Ø 4 mm
Bracket, universally adjustable
Brushes
Installation accessories
simalube multipoint installation components
D R 1/8 R 1/4 M 5 M 6
Nr. 290.1170 290.1171 290.1172 290.1173
L 25 40 70 100
Nr. 290.2038 290.2035 290.2036 290.2037
Nr. 290.2038-FN 290.2035-FN 290.2036-FN 290.2037-FN
L 25 40 70 100
Nr. 290.2038-S 290.2035-S 290.2036-S 290.2037-S
Nr. 290.2038-SFN 290.2035-SFN 290.2036-SFN 290.2037-SFN
D×L Ø 25×45
Nr. 290.2034
L per meter
Nr. 290.2000/...m
D 50
Nr. 290.2012
L per metre
Nr. 290.2002/...m
H 15
Nr. 290.2014
Nr. 290.2800
Nr. 290.2019
L per metre
Nr. 290.2004/...m
D×L Ø 25×15
Nr. 290.2041
Nr. 290.2042
Nr. 290.2039 Nr. 290.2044
D 22 28 50
Nr. 290.2015 290.2013 290.2010
1× 3× 5×
L 75 240 390
Nr. 290.2082 290.2083 290.2084
[mm]
Ø 8/6 mm
Ø 8/6 mm
Ø 8/6 mm
Connection SLM
D 5×Ø 4 mm
Nr. 290.2900
Grease Cartridge, 400 ml
Grease cartridges and oil bottles for prelubrication
SL01 SL02 SL04 SL06 SL09
Nr. 290.7001 290.7002 290.7004 290.7006 290.7009
SL10 SL24 SL25 SL26
Nr. 290.7010 290.7024 290.7025 290.7026
Oil bottle, 0.5 l
SL14 SL15 SL16 SL18 SL19
Nr. 290.7114 290.7115 290.7116 290.7118 290.7119
simalube IMPULSE, pressure booster
simalube IMPULSE accessories
Battery pack
Hose, available by the metre
L per metre
Nr. 290.2100/...m
Ø 4/2.7 mm
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
Nr. 230.1000
Power 6 V 2.3 Ah 6 V 2.9 Ah
Nr. 230.5000 230.5001
simatec ag
Stadthof 2, CH-3380 Wangen a. Aare
Tel.: +41 (0)32 636 50 00
Fax: +41 (0)32 636 50 19
welcome@simatec.com
www.simatec.com
1601/610.92012
simatec – innovative solutions that deliver
outstanding customer benefits
Maintenance products by simatec – Industrial technology
simatec is an international, Swiss family
enterprise. Since its founding in 1983, this
motivated team has been developing, manufacturing
and marketing innovative products
for the maintenance of rolling bearings
under the brand names of simalube, simatherm
and simatool.
The direct customer benefits are always at
the forefront. Using newly developed technologies,
simatec simplifies complex processes
and reduces routine maintenance
for tens of thousands of machines around
the globe.
Select trading partners sell simatec maintenance
products around the world. They
provide professional service and individual,
expert advice.
Lubricators
The simalube lubricator provides automatic
lubrication over a period of one
month to a year and can be adjusted in
an infinitely variable manner. simalube
supplies every lubricating point with the
ideal amount of lubricant – be it oil or
grease – so that subsequent manual lubrication
is no longer needed and maintenance
costs are reduced in the long term.
Induction Heaters
simatherm induction heaters heat circular
metal parts, such as roller bearings, in a
very short amount of time, so they can
be installed quickly and efficiently. The
inductive heating of metallic workpieces
makes sense from both an economical
and ecological perspective. simatec is the
world’s leading manufacturer of these types
of heaters.
Tools
The simatool toolkits enable the fast installation
and removal of roller bearings and
seals. They are used all over the world in
machine and maintenance workshops
within all industries.
simalube
videohttp://simalube.be
http://simalube.be/en/
http://simalube.be/en/index.php
http://simalube.be/en/index.php/simalube
VKE = Packaging unit 10 pieces
simalube 15 ml
Item number
VKE
210.11
*
SL00 15
simalube 15ml empty for self-filling with grease
210.1100-1
*
SL00-1 15
simalube 15ml empty for self-filling with oil
210.1101
*
SL01 15
simalube 15ml with multipurpose grease
210.1102
*
SL02 15
simalube 15ml with multipurpose grease with MoS2
210.1104
*
SL04 15
simalube 15ml with high temperature grease
210.1106
*
SL06 15
simalube 15ml with fluid grease
210.1109
*
SL09 15
simalube 15ml with biodegradable grease
210.111
*
SL10 15
simalube 15ml with food industry grease
210.1112
*
SL12 15
simalube 15ml filled with very soft food grease
210.1114
*
SL14 15
simalube 15ml with chain oil
210.1115
*
SL15 15
simalube 15ml with high temperature chain oil
210.1116
*
SL16 15
simalube 15ml with slideway oil
210.1118
*
SL18 15
simalube 15ml with foodoil
210.1119
*
SL19 15
simalube 15ml with biodegradable oil
210.1124
*
SL24 15
simalube 15ml with multipurpose grease for a wide temp. range
210.1125
*
SL25 15
simalube 15ml with high performance grease
210.1126
*
SL26 15
simalube 15ml with calcium sulfonate complex grease
220.5002
*
Gas generator Refill 15ml
Gas generator for refilling 15ml
simalube 30 ml
Item number
VKE
210.12
*
SL00 30
simalube 30ml empty for self-filling with grease
210.1200-1
*
SL00-1 30
simalube 30ml empty for self-filling with oil
210.1201
*
SL01 30
simalube 30ml with multipurpose grease
210.1202
*
SL02 30
simalube 30ml with multipurpose grease with MoS2
210.1204
*
SL04 30
simalube 30ml with high temperature grease
210.1206
*
SL06 30
simalube 30ml with fluid grease
210.1209
*
SL09 30
simalube 30ml with biodegradable grease
210.121
*
SL10 30
simalube 30ml with food industry grease
210.1212
*
SL12 30
simalube 30ml filled with very soft food grease
210.1214
*
SL14 30
simalube 30ml with chain oil
210.1215
*
SL15 30
simalube 30ml with high temperature chain oil
210.1216
*
SL16 30
simalube 30ml with slideway oil
210.1218
*
SL18 30
simalube 30ml with foodoil
210.1219
*
SL19 30
simalube 30ml with biodegradable oil
210.1224
*
SL24 30
simalube 30ml with multipurpose grease for a wide temp. range
210.1225
*
SL25 30
simalube 30ml with high performance grease
210.1226
*
SL26 30
simalube 30ml with calcium sulfonate complex grease
220.5004
*
Gas generator Refill 30ml
Gas generator for refilling 30ml
VKE = Packaging unit 10 pieces
simalube 60 ml
Item number
VKE
210.13
*
SL00 60
simalube 60ml empty for self-filling with grease
210.1300-1
*
SL00-1 60
simalube 60ml empty for self-filling with oil
210.1301
*
SL01 60
simalube 60ml with multipurpose grease
210.1302
*
SL02 60
simalube 60ml with multipurpose grease with MoS2
210.1304
*
SL04 60
simalube 60ml with high temperature grease
210.1306
*
SL06 60
simalube 60ml with fluid grease
210.1309
*
SL09 60
simalube 60ml with biodegradable grease
210.131
*
SL10 60
simalube 60ml with food industry grease
210.1312
*
SL12 60
simalube 60ml filled with very soft food grease
210.1314
*
SL14 60
simalube 60ml with chain oil
210.1315
*
SL15 60
simalube 60ml with high temperature chain oil
210.1316
*
SL16 60
simalube 60ml with slideway oil
210.1318
*
SL18 60
simalube 60ml with foodoil
210.1319
*
SL19 60
simalube 60ml with biodegradable oil
210.1324
*
SL24 60
simalube 60ml with multipurpose grease for a wide temp. range
210.1325
*
SL25 60
simalube 60ml with high performance grease
210.1326
*
SL26 60
simalube 60ml with calcium sulfonate complex grease
220.5006
*
Gas generator Refill 60ml
Gas generator for refilling 60ml
simalube 125 ml
Item number
VKE
210.14
*
SL00 125
simalube 125ml empty for self-filling with grease
210.1400-1
*
SL00-1 125
simalube 125ml empty for self-filling with oil
210.1401
*
SL01 125
simalube 125ml with multipurpose grease
210.1402
*
SL02 125
simalube 125ml with multipurpose grease with MoS2
210.1404
*
SL04 125
simalube 125ml with high temperature grease
210.1406
*
SL06 125
simalube 125ml with fluid grease
210.1409
*
SL09 125
simalube 125ml with biodegradable grease
210.141
*
SL10 125
simalube 125ml with food industry grease
210.1412
*
SL12 125
simalube 125ml filled with very soft food grease
210.1414
*
SL14 125
simalube 125ml with chain oil
210.1415
*
SL15 125
simalube 125ml with high temperature chain oil
210.1416
*
SL16 125
simalube 125ml with slideway oil
210.1418
*
SL18 125
simalube 125ml with foodoil
210.1419
*
SL19 125
simalube 125ml with biodegradable oil
210.1424
*
SL24 125
simalube 125ml with multipurpose grease for a wide temp. range
210.1425
*
SL25 125
simalube 125ml with high performance grease
210.1426
*
SL26 125
simalube 125ml with calcium sulfonate complex grease
220.5008
*
Gas generator Refill 125ml
Gas generator for refilling 125ml
VKE = Packaging unit 10 pieces
simalube 250 ml
Item number
VKE
210.15
*
SL00 250
simalube 250ml empty for self-filling with grease
210.1500-1
*
SL00-1 250
simalube 250ml empty for self-filling with oil
210.1501
*
SL01 250
simalube 250ml with multipurpose grease
210.1502
*
SL02 250
simalube 250ml with multipurpose grease with MoS2
210.1504
*
SL04 250
simalube 250ml with high temperature grease
210.1506
*
SL06 250
simalube 250ml with fluid grease
210.1509
*
SL09 250
simalube 250ml with biodegradable grease
210.151
*
SL10 250
simalube 250ml with food industry grease
210.1512
*
SL12 250
simalube 250ml filled with very soft food grease
210.1514
*
SL14 250
simalube 250ml with chain oil
210.1515
*
SL15 250
simalube 250ml with high temperature chain oil
210.1516
*
SL16 250
simalube 250ml with slideway oil
210.1518
*
SL18 250
simalube 250ml with foodoil
210.1519
*
SL19 250
simalube 250ml with biodegradable oil
210.1524
*
SL24 250
simalube 250ml with multipurpose grease for a wide temp. range
210.1525
*
SL25 250
simalube 250ml with high performance grease
210.1526
*
SL26 250
simalube 250ml with calcium sulfonate complex grease
220.501
*
Gas generator Refill 250ml
Gas generator for refilling 250ml
simalube IMPULSE
Item number
VKE
230.1
simalube IMPULSE
simalube IMPULSE, Pressure booster 60-25ml
230.5
*
Battery pack 6 V/2,3 Ah
Battery pack 6 V/2,3 Ah
fix 3.61
simalube Multipoint
Item number
VKE
210.46
SLM 5x8 00
simalube Multipoint empty for self-filling with grease
210.4601
SLM 5x8 01
simalube Multipoint with multipurpose grease
210.4606
SLM 5x8 06
simalube Multipoint with fluid grease
210.461
SLM 5x8 10
simalube Multipoint with food industry grease
210.4612
SLM 5x8 12
simalube Multipoint filled with very soft food grease
210.4614
SLM 5x8 14
simalube Multipoint with chain oil
210.4618
SLM 5x8 18
simalube Multipoint with foodoil
Accessory parts
Item number
VKE
290.1001
*
Bent connection 45° R 1/4
290.1002
*
Bent connection 90° R 1/4
290.1003
Rotary elbow for hose Ø 8mm G 1/4" female
290.1004
Bent connection 90° R 1/4 swiveling
290.1005
90° connection with thread incl. Nuts (only for oil)
290.1007
Elbow rotary for hose ø 8mm G 1/8" male
290.1008
Elbow rotary for hose ø 8mm G 1/4" male
290.101
*
Connecting nipple G 3/8"
290.1011
*
Connecting nipple G 1/2"
290.1015
Fixation nipple G 1/2" - R 1/4"
290.102
*
Reducing nipple G 1/8"
290.1021
*
Reducing nipple G 1/4"
290.1022
*
Reducing nipple M6
290.1023
*
Reducing nipple M8
290.1024
*
Reducing nipple M8x1
290.1025
*
Reducing nipple M10
290.1026
*
Reducing nipple M10x1
290.1027
*
Reducing nipple M12
290.1028
*
Reducing nipple M12x1.5
290.104
*
Extension 35mm
290.1041
*
Extension 50mm
290.1045
Screwed connection with hole 25mm, incl. 1 nut
290.1046
Screwed connection with hole 60mm, incl. 2 nuts
290.105
Y-manifold R 1/4"
290.106
*
Quick connection for hose ø 8mm G 1/4" female
290.107
*
Quick connection for hose ø 8mm G 1/8" male
290.1071
*
Quick connection for hose ø 8mm G 1/4" male
290.1072
*
Quick connection for hose ø 8mm G 3/8" male
290.1102
*
Rotary elbow for hose Ø 4mm G 1/4" female
290.1103
*
Rotary elbow for hose Ø 4mm M5 male
290.1104
*
Rotary elbow for hose Ø 4mm M6 male
290.1107
*
Rotary elbow for hose Ø 4mm G 1/8" male
290.1108
*
Rotary elbow for hose Ø 4mm G 1/4" male
290.1121
*
Reducing nipple UNF 1/4"
290.116
*
Quick connection for hose ø 4mm G 1/4" female
290.117
Quick connection 1/8"
290.1171
Quick connection 1/4"
290.1172
Quick connection M5
290.1173
Quick connection M6
290.1174
*
Quick connection for hose ø 4mm M6 x 0.75 male
290.118
*
Reducing connection for hose ø 8mm - ø 4mm
Accessory parts
Item number
VKE
290.2
Hose ø 8/6mm
290.2002
Hose for temperatures up to 260 °C ø 8/6mm
290.2004
Hose for small bend radius ø 8/6mm
290.201
Clamp for simalube, Plastic, ø 50mm
290.2012
Adapter for clamp (60mm), Plastic, ø 50mm
290.2013
Clamp for round brush, Plastic, ø 28mm
290.2014
Distance holder to clamp four round brush 290.2013, 15mm
290.2015
Clamp for simalube 15ml, Plastic, ø 22mm
290.2019
Magnetic fixture for clamps
290.202
Non-return valve G 1/8"
290.2021
Non-return valve G 1/4"
290.2023
Non-return valve R 1/4", 1.0 bar
290.2034
Round brush ø 25x45mm
290.2035
Brush 40mm
290.2035-S
Brush lateral connection 40mm
290.2035-FN
Brush for food applications 40mm
290.2035-SFN
Brush lateral connection for food applications 40mm
290.2036
Brush 70mm
290.2036-S
Brush lateral connection 70mm
290.2036-FN
Brush for food applications 70mm
290.2036-SFN
Brush lateral connection for food applications 70mm
290.2037
Brush 100mm
290.2037-S
Brush lateral connection 100mm
290.2037-FN
Brush for food applications 100mm
290.2037-SFN
Brush lateral connection for food applications 100mm
290.2038
Brush 25mm
290.2038-S
Brush lateral connection 25mm
290.2038-FN
Brush for food applications 25mm
290.2039
Elevator brush big 5-16mm, 151x102mm
290.2041
Round brush short ø 25x15mm
290.2042
Elevator brush small 5-16mm, 113x84mm
290.2044
Elevator brush big 16-32mm, 151x102mm
290.205
Brush high temperature (250°C) 25mm
290.2051
Brush high temperature (250°C) 40mm
290.2053
Brush high temperature (250°C) 100mm
290.2075
Protection cap for 30-125ml
290.2076
Sun protection cover for 30-125ml
290.2077
Sun protection cover for 250ml
290.2078
Protection cap for 250ml
Accessory parts
Item number
VKE
290.208
Mounting support for simalube 30-250ml R 1/4"
290.2081
Protective cover 30-125ml to mounting support 290.2080, varnished steel
290.2082
Bracket to mounting support, 1-fold length 75mm
290.2083
Bracket to mounting support, 3-fold length 240mm
290.2084
Bracket to mounting support, 5-fold length 390mm
290.2085
Protective cover 250ml to mounting support 290.2080, chromium steel
290.21
Hose 4/2.7mm
290.28
Bracket, universally adjustable
290.29
Connection SLM
290.301
Grease gun with connection pipe
290.3011
Connector nipple for cleaning and filling of grease lines R 1/4"
290.3012
Refill nipple for refilling of simalube G 1/4"
290.3013
Refill nipple to grease gun filler for filling simalube R 1/4"
290.3014
Refill nipple to grease gun filler for filling simalube R 3/8"
290.401
*
Allen key 3mm
290.4025
Torque wrench
376.98
245.04
290.4026
Torque wrench adapter for gas generator 15-250ml
290.41
4-fold adapter G 1/2"
290.4101
4-fold adapter G 1/4"
290.4102
2-fold adapter G 1/2"
290.4103
2-fold adapter G 1/4"
290.505
Closing nipple, Plastic, Packaging size 100 pieces
290.506
*
Non-return valve plug, Plastic
290.508
*
Gasket ring
290.509
*
Washer magenta
290.5095
*
Cap for 250ml
290.7001
Grease Cartridge 400ml SL01
290.7002
Grease Cartridge 400ml SL02
290.7004
Grease Cartridge 400ml SL04
290.7006
Grease Cartridge 400ml SL06
290.7009
Grease Cartridge 400ml SL09
290.701
Grease Cartridge 400ml SL10
290.7012
Grease Cartridge 400ml SL12
290.7024
Grease Cartridge 400ml SL24
290.7025
Grease Cartridge 400ml SL25
290.7026
Grease Cartridge 400ml SL26
290.71
Oil bottle 0,5l empty
290.7114
Oil bottle 0,5l SL14
290.7115
Oil bottle 0,5l SL15
290.7116
Oil bottle 0,5l SL16
290.7118
Oil bottle 0,5l SL18
290.7119
Oil bottle 0,5l SL19
simatherm IH 025 VOLCANO
Item number
IH 025/230V
simatherm Induction Heater IH 025, 230V/50-60Hz
IH 025/115V
simatherm Induction Heater IH 025, 110-115V/60Hz
Accessory parts
Item number
190.1001
IH P2 probe type K
Temperature probe Typ K for IH 025/070/090/210
270.38
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1007
IH KF keyboard foil
Keyboard foil for IH 025/070/090/210
190.1008
IH 025/030/070-S main switch
Main switch 100 - 230V/20A for IH 025/030/070
190.1101
IH 025-B soft case
Portable soft-case for IH 025
190.1102
IH 025-P2 power PCB 230V
Printed circuit board for IH 025/230V
190.1104
IH 025-D display PCB
Display Print for IH 025
271.92
190.1105
IH 025-P4 power PCB 115V
Printed circuit board for IH 025/115V
190.7101
IH 025-G housing cover
Housing cover for IH 025, incl. keyboard foil
356.48
231.71
simatherm IH 070
Item number
IH 070/230V
simatherm Induction Heater IH 070, 230V/50-60Hz
fix 2'001.81
IH 070/115V
simatherm Induction Heater IH 070, 110-115V/60Hz
fix 2'001.81
Accessory parts
Item number
190.1001
IH P2 probe type K
Temperature probe Typ K for IH 025/070/090/210
270.38
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1004
IH 030/070/090-YS set support yoke
Set support yoke 55 x 55 x 100mm for IH 030/070/090
295.05
190.1007
IH KF keyboard foil
Keyboard foil for IH 025/070/090/210
190.1008
IH 025/030/070-S main switch
Main switch 100 - 230V/20A for IH 025/030/070
190.1302
IH 070/090-SA swivel arm
Swivel arm complete for IH 070/090
190.1303
IH 070/090-Y1 yoke 10x10x275mm
Yoke 10 x 10 x 275mm
190.1304
IH 070/090-Y2 yoke 14x14x275mm
Yoke 14 x 14 x 275mm
190.1305
IH 070/090-Y3 yoke 20x20x275mm
Yoke 20 x 20 x 275mm
190.1306
IH 070/090-Y4 yoke 28x28x275mm
Yoke 28 x 28 x 275mm
214.14
190.1307
IH 070/090-Y6 yoke 40x40x275mm
Yoke 40 x 40 x 275mm
299.27
194.53
190.1308
IH 070/090-Y8 yoke 55x55x275mm
Yoke 55 x 55 x 275mm
275.57
190.1309
IH 070-C110V induction coil 110V
Coil 100-115V/50-60Hz for IH 070
1'057.71
190.131
IH 070-C230V induction coil 230V
Coil 200-230V/50-60Hz for IH 070/090
1'057.71
190.1311
IH 070-P power PCB 100-240V
Power Print 100-240V/50-60Hz for IH 070
190.1312
IH 070/090-WB wooden box
Reusable wooden packaging for IH 070/090
303.85
197.5
190.7301
IH 070/090-H heating pad
Heating pad incl. sealing for IH 070/090
190.7303
IH 070-CP/110V control PCB 110V
Control print for IH 070/115V
190.7304
IH 070/090-CP control PCB 230/400V
Control Print for IH 070/230V or IH 090/400V
simatherm IH 090
Item number
IH 090/400V
simatherm Induction Heater IH 090, 400-460V/50-60Hz; with fan
Accessory parts
Item number
190.1001
IH P2 probe type K
Temperature probe Typ K for IH 025/070/090/210
270.38
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1004
IH 030/070/090-YS set support yoke
Set support yoke 55 x 55 x 100mm for IH 030/070/090
295.05
190.1005
IH 090/210-P power PCB 400-610V
Power Print 400-610V/50-60Hz for IH 090/210
190.1007
IH KF keyboard foil
Keyboard foil for IH 025/070/090/210
190.1301
IH 090-S main switch 16A
Main switch 16A for IH 090
190.1302
IH 070/090-SA swivel arm
Swivel arm complete for IH 070/090
190.1303
IH 070/090-Y1 yoke 10x10x275mm
Yoke 10 x 10 x 275mm
190.1304
IH 070/090-Y2 yoke 14x14x275mm
Yoke 14 x 14 x 275mm
190.1305
IH 070/090-Y3 yoke 20x20x275mm
Yoke 20 x 20 x 275mm
190.1306
IH 070/090-Y4 yoke 28x28x275mm
Yoke 28 x 28 x 275mm
214.14
190.1307
IH 070/090-Y6 yoke 40x40x275mm
Yoke 40 x 40 x 275mm
299.27
194.53
190.1308
IH 070/090-Y8 yoke 55x55x275mm
Yoke 55 x 55 x 275mm
275.57
190.1312
IH 070/090-WB wooden box
Reusable wooden packaging for IH 070/090
303.85
197.5
190.1313
IH 090-C induction coil 400-460V
Coil 400-460V/50-60Hz for IH 090
190.7301
IH 070/090-H heating pad
Heating pad incl. sealing for IH 070/090
190.7304
IH 070/090-CP control PCB 230/400V
Control Print for IH 070/230V or IH 090/400V
simatherm IH 210
Item number
IH 210/400V
simatherm Induction Heater IH 210, 400-460V/50-60Hz
IH 210/200V
simatherm Induction Heater IH 210, 200-230V/50-60Hz
IH 210-XL/400V
simatherm Induction Heater IH 210-XL, 400-460V/50-60Hz
IH 210F/400V
simatherm Induction Heater IH 210, 400-460V/50-60Hz; with fan
IH 210F-XL/400V
simatherm Induction Heater IH 210F-XL, 400-460V/50-60Hz; with fan
Accessory parts
Item number
190.1001
IH P2 probe type K
Temperature probe Typ K for IH 025/070/090/210
270.38
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1005
IH 090/210-P power PCB 400-610V
Power Print 400-610V/50-60Hz for IH 090/210
190.1007
IH KF keyboard foil
Keyboard foil for IH 025/070/090/210
190.1401
IH 210-C induction coil 400-460V
Coil 400-460V/50-60Hz for IH 210
190.1402
IH 210-P/200V power PCB 200-230V
Power Print 200-230V/50-60Hz for IH 210
190.1403
IH 210-S main switch 25A
Main switch 25A for IH 210
259.77
190.1404
IH 210-Y60 yoke 40x40x420mm
Yoke 40 x 40 x 420mm
309.72
201.32
190.1405
IH 210-Y80 yoke 55x55x420mm
Yoke 55 x 55 x 420mm
321.83
190.1406
IH 210-YS set support yokes 70x70x150mm
Set support yoke 70 x 70 x 150mm for IH 210
190.1407
IH 210-WB wooden box
Reusable wooden packaging for IH 210
311.32
190.1408
IH 210-Y100 yoke 70x70x420mm
Yoke 70 x 70 x 420mm
190.1409
IH 210-C/200V induction coil 200-230V
Coil 200-230V/50-60Hz for IH 210
190.1411
IH 210-S/200V main switch 50A
Main switch 50A for IH 210
273.67
190.1413
IH 210-FS yoke guides
Set yoke guides for IH 210
254.31
190.7401
IH 210-CP/200V control PCB 200V
Control Print for IH 210/200V
190.7402
IH 210-CP control PCB
Control Print for IH 210/400V or IH 090/200V
190.7403
IH 210-H heating pad
Heating pad incl. sealing for IH 210
190.7404
IH 210-YH yoke roller housing
Yoke roller housing for IH 210
347
simatherm IH 240
Item number
IH 240/400V
simatherm Induction Heater IH 240, 400V/50Hz
IH 240/460V
simatherm Induction Heater IH 240, 460V/60Hz
Accessory parts
Item number
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1003
IH P1 probe type J
Temperature probe Typ J for IH 030/240
237.93
190.1501
IH 240-3 yoke 65x65x570mm
Yoke 65 x 65 x 570mm for IH 240
1'625.49
1'056.57
190.1502
IH 240-7 main switch 63A
Main Switch 63A for IH 240
312.12
190.1503
IH 240-10 set support yoke 100x100x150mm
Set support yoke 100 x 100 x 150mm for IH 240
190.1504
IH 240-11 set support yoke 100x100x370mm
Set support yoke 100 x 100 x 370mm for IH 240
190.1506
IH 240-2 yoke 100x100x570mm
Yoke 100 x 100 x 570mm for IH 240
190.7501
IH 240-1 master PCB 400V
Printed circuit board for IH 240/400V
190.7502
IH 240-5 thyristor
Thyristor for IH 240
376.57
244.77
190.7503
IH 240-6 thyristor protection board
Thyristor protection board for IH 240
222.79
Hot plates
Item number
HPS 200/230V
simatherm Hot Plate small HPS, 230V/50Hz 200 °C
HPS 200/110V
simatherm Hot Plate small HPS, 100-115V/50-60Hz 200 °C
HPL 200/230V
simatherm Hot Plate large HPL, 230V/50Hz 200 °C
HPL 200/110V
simatherm Hot Plate large HPL, 100-115V/50-60Hz 200 °C
Accessory parts IH 030
Item number
190.1002
IH PROTECTIVE GLOVES
Protective gloves
190.1003
IH P1 probe type J
Temperature probe Typ J for IH 030/240
237.93
190.1004
IH 030/070/090-YS set support yoke
Set support yoke 55 x 55 x 100mm for IH 030/070/090
295.05
190.1008
IH 025/030/070-S main switch
Main switch 100 - 230V/20A for IH 025/030/070
190.1201
IH 030-3 yoke 14x14x240mm
Yoke 14 x 14 x 240mm
190.1202
IH 030-4 yoke 28x28x240mm
Yoke 28 x 28 x 240mm
190.1203
IH 030-5 yoke 55x55x240mm
Yoke 55 x 55 x 240mm
319.61
207.75
190.1204
IH 030-1A triac 230V 25A
Triac 25A 230V for IH 030
190.1205
IH 030-1B triac 110V 40A
Triac 40A 110V/100V for IH 030
190.1208
IH 030-9 rubber mat
Rubber mat for IH 030
190.1209
IH 030-10 yoke 20x20x240mm
Yoke 20 x 20 x 240mm
190.121
IH 030-11 yoke 45x45x240mm
Yoke 45 x 45 x 240mm
325.53
211.59
190.1211
IH 030-12 yoke 10x10x240mm
Yoke 10 x 10 x 240mm
190.1212
IH 030-13 yoke 25x25x240mm
Yoke 25 x 25 x 240mm
231.75
190.1213
IH 030-14 yoke 40x40x240mm
Yoke 40 x 40 x 240mm
298.7
194.16
190.1214
IH 030-0B keyboard foil
Keyboard foil for IH 030
190.1215
IH 030-2 master PCB for IH 030
Masterboard for IH 030
190.7203
IH 030-1 power PCB 230V
Power Print for IH 030/230V
373.41
190.7204
IH 030-1/110V power PCB 110V
Power Print for IH 030/110V
373.41
BHT Bearing Handling Tool
Item number
310.111
Bearing Handling Tool 300-500
Bearing Handling Tool 300-500
310.112
Bearing Handling Tool 500-700
Bearing Handling Tool 500-700
Accessory parts
Item number
390.1101
BHT-LB1 inner ring holders 160mm
2 pcs. Inner ring holders for bearing width until 160 mm
390.1102
BHT-LB2 inner ring holders 260mm
2 pcs. Inner ring holders for bearing width until 260 mm
390.1103
BHT-S1 carrying belts
2 pcs. carrying belts, Lenght: 1m
TP 150 Twin Puller
Item number
310.1209
Twin Puller TP 150
Twin Puller TP 150
Accessory parts
Item number
310.1267
TP 150-SH slide hammer
Slide hammer for TP 150
310.1269
STS-8 support ring
Support ring 8
310.127
STS-9 support ring
Support ring 9
310.1412
STS-1 support ring
Support ring 1
310.1413
STS-2 support ring
Support ring 2
310.1414
STS-3 support ring
Support ring 3
310.1415
STS-4 support ring
Support ring 4
310.1416
STS-5 support ring
Support ring 5
310.1417
STS-6 support ring
Support ring 6
310.1418
STS-7 support ring
Support ring 7
310.1517
SP 50-VK bar short
Bar short
390.1205
TP 150-EC empty case
Plastic case with inlay for TP 150
390.1423
MK M12 spindle
Center screw with nut M12
390.1424
MK M16 spindle
Center screw with nut M16
390.7184
BP A1
Spare arm A1
390.7185
BP A2
Spare arm A2
390.7186
BP A3
Spare arm A3
390.7187
BP A4
Spare arm A4
390.7188
BP A5
Spare arm A5
390.7189
BP A6
Spare arm A6
390.72
SP 50-50S screws
Screws 50 pieces
BP 61 Bearing Puller
Item number
310.121
Bearing Puller BP 61
Bearing Puller BP 61
Accessory parts
Item number
390.1201
BP M12 spindle
Spindle with nut and handle M12
390.1202
BP M16 spindle
Spindle with nut and handle M16
390.1203
BP 61-EC empty case
Plastic case with inlay for BP 61
390.7184
BP A1
Spare arm A1
390.7185
BP A2
Spare arm A2
390.7186
BP A3
Spare arm A3
390.7187
BP A4
Spare arm A4
390.7188
BP A5
Spare arm A5
390.7189
BP A6
Spare arm A6
FT 33 Fitting Tool
Item number
310.131
Fitting Tool FT 33
Fitting Tool FT 33
349.79
Accessory parts
Item number
390.1001
FT 33-A sleeve
Sleeve A complete
390.1002
FT 33-B sleeve
Sleeve B complete
390.1003
FT 33-C sleeve
Sleeve C complete
390.7151
FT 33-A10/26
Ring A 10/26
390.7152
FT 33-A10/30
Ring A 10/30
390.7153
FT 33-A10/35
Ring A 10/35
390.7154
FT 33-A12/28
Ring A 12/28
390.7155
FT 33-A12/32
Ring A 12/32
390.7156
FT 33-A12/37
Ring A 12/37
390.7157
FT 33-A15/32
Ring A 15/32
390.7158
FT 33-A15/35
Ring A 15/35
390.7159
FT 33-A15/42
Ring A 15/42
390.716
FT 33-A17/35
Ring A 17/35
390.7161
FT 33-A17/40
Ring A 17/40
390.7162
FT 33-A17/47
Ring A 17/47
390.7163
FT 33-B20/42
Ring B 20/42
390.7164
FT 33-B20/47
Ring B 20/47
390.7165
FT 33-B20/52
Ring B 20/52
390.7166
FT 33-B25/47
Ring B 25/47
390.7167
FT 33-B25/52
Ring B 25/52
390.7168
FT 33-B25/62
Ring B 25/62
390.7169
FT 33-B30/55
Ring B 30/55
390.717
FT 33-B30/62
Ring B 30/62
390.7171
FT 33-B30/72
Ring B 30/72
390.7172
FT 33-C35/62
Ring C 35/62
390.7173
FT 33-C35/72
Ring C 35/72
390.7174
FT 33-C35/80
Ring C 35/80
390.7175
FT 33-C40/68
Ring C 40/68
390.7176
FT 33-C40/80
Ring C 40/80
390.7177
FT 33-C40/90
Ring C 40/90
390.7178
FT 33-C45/75
Ring C 45/75
390.7179
FT 33-C45/85
Ring C 45/85
390.718
FT 33-C45/100
Ring C 45/100
390.7181
FT 33-C50/80
Ring C 50/80
390.7182
FT 33-C50/90
Ring C 50/90
390.7183
FT 33-C50/110
Ring C 50/110
390.8184
FT 33-H hammer
Hammer for FT 33
390.8185
FT 33-EC empty case
Plastic case with inlay for FT 33
MK 10-30 Bearing Maintenance Kit
Item number
310.141
Bearing Maintenance Kit MK 10-30
Bearing Maintenance Kit MK 10-30
Accessory parts
Item number
310.1412
STS-1 support ring
Support ring 1
310.1413
STS-2 support ring
Support ring 2
310.1414
STS-3 support ring
Support ring 3
310.1415
STS-4 support ring
Support ring 4
310.1416
STS-5 support ring
Support ring 5
310.1417
STS-6 support ring
Support ring 6
310.1418
STS-7 support ring
Support ring 7
390.1001
FT 33-A sleeve
Sleeve A complete
390.1002
FT 33-B sleeve
Sleeve B complete
390.1402
MK 10-30-EC empty case
Plastic case with inly for MK 10-30
390.1419
MK SH slide hammer
Slide hammer for MK 10-30
390.1423
MK M12 spindle
Center screw with nut M12
390.1424
MK M16 spindle
Center screw with nut M16
390.7154
FT 33-A12/28
Ring A 12/28
390.7155
FT 33-A12/32
Ring A 12/32
390.7156
FT 33-A12/37
Ring A 12/37
390.7157
FT 33-A15/32
Ring A 15/32
390.7158
FT 33-A15/35
Ring A 15/35
390.7159
FT 33-A15/42
Ring A 15/42
390.716
FT 33-A17/35
Ring A 17/35
390.7161
FT 33-A17/40
Ring A 17/40
390.7162
FT 33-A17/47
Ring A 17/47
390.7163
FT 33-B20/42
Ring B 20/42
390.7164
FT 33-B20/47
Ring B 20/47
390.7165
FT 33-B20/52
Ring B 20/52
390.7166
FT 33-B25/47
Ring B 25/47
390.7167
FT 33-B25/52
Ring B 25/52
390.7168
FT 33-B25/62
Ring B 25/62
390.7169
FT 33-B30/55
Ring B 30/55
390.717
FT 33-B30/62
Ring B 30/62
390.7171
FT 33-B30/72
Ring B 30/72
390.7184
BP A1
Spare arm A1
390.7185
BP A2
Spare arm A2
390.7186
BP A3
Spare arm A3
390.7187
BP A4
Spare arm A4
390.7188
BP A5
Spare arm A5
390.8184
FT 33-H hammer
Hammer for FT 33
SP 50 Seal Puller
Item number
310.151
Seal Puller SP 50
Dismounting tool SP 50, with 50 screws for single use
265.74
Accessory parts
Item number
390.72
SP 50-50S screws
Screws 50 pieces
390.7201
SP 50-25SK screws small
Screws small 25 pieces
390.7202
SP 50-50D distance sleeves
Distance sleeves 50 pieces
390.7203
SP 50-EC empty case
Plastic case empty with inlay for SP 50
310.1512
SP 50-VL bar long
Bar long
310.1517
SP 50-VK bar short
Bar short
MEMBER
▲
▼
รายการสั่งซื้อของฉัน
รายการสั่งซื้อของฉัน
ข้อมูลร้านค้านี้
บริษัท อันดา อินเตอร์พาร์ท จำกัด
จำหน่าย นำเข้าอะไหล่วิศวกรรม จากต่างประเทศ สอบถามและปรึกษาได้ โทร 081-762-3248 info@andainterpart.com
เบอร์โทร : 081-762-3248
อีเมล : info@andainterpart.com
อีเมล : info@andainterpart.com
ส่งข้อความติดต่อร้าน
เกี่ยวกับร้านค้านี้
ค้นหาสินค้าในร้านนี้
ค้นหาสินค้า
สินค้าที่ดูล่าสุด
บันทึกเป็นร้านโปรด
Join เป็นสมาชิกร้าน
แชร์หน้านี้
แชร์หน้านี้
↑
TOP เลื่อนขึ้นบนสุด
TOP เลื่อนขึ้นบนสุด
สินค้าในตะกร้า ({{total_num}} รายการ)
ขออภัย ขณะนี้ยังไม่มีสินค้าในตะกร้า
ราคาสินค้าทั้งหมด
฿ {{price_format(total_price)}}
- ฿ {{price_format(discount.price)}}
ราคาสินค้าทั้งหมด
{{total_quantity}} ชิ้น
฿ {{price_format(after_product_price)}}
ราคาไม่รวมค่าจัดส่ง
รวมภาษีมูลค่าเพิ่มแล้ว
➜ เลือกซื้อสินค้าเพิ่ม
